Vespa GT Front Crash Bar

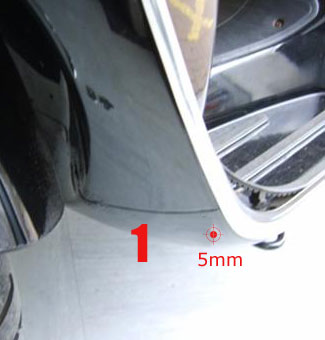

1. Hold Crash Bar Against Leg Shield And Mark A Hole On The Bottom Part

Of The Belly Pan Both sides . . This Is Better Done By 2-People And A Tape Measure

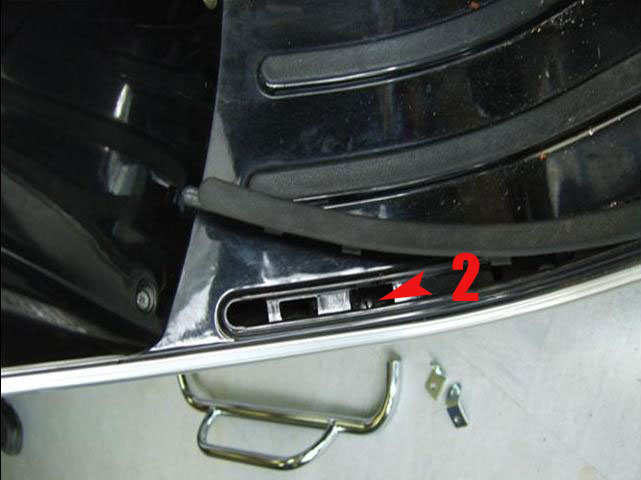

2. Pull Back Front Of Outer Runner Strip And Drill 5mm Hole

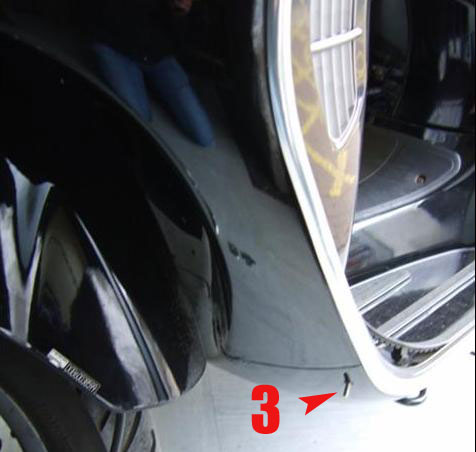

3. Place The Screw Supplied In The Hole

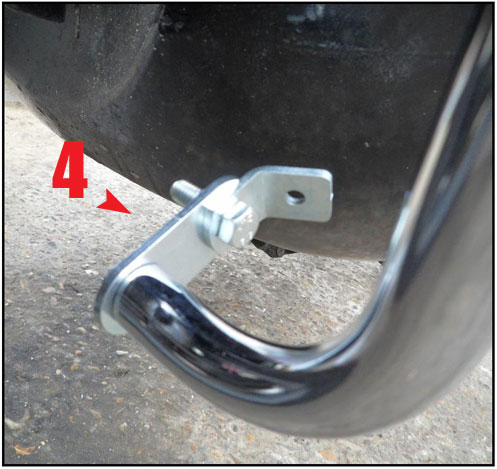

4. Fit The Bottom Brakets And Do Them Up Hand Tight

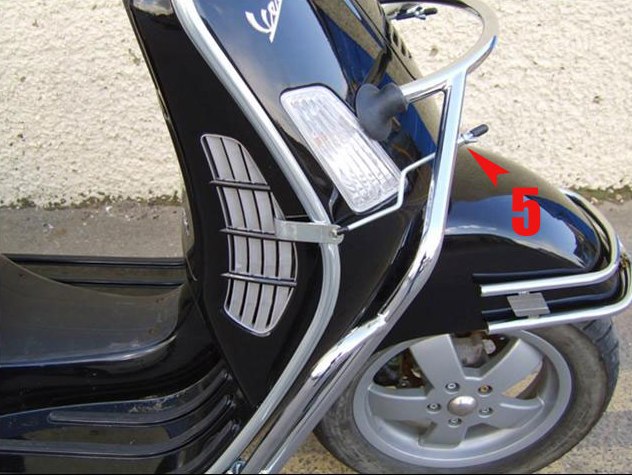

5. Fit The Top Arms And Hook As Shown . . . Hand Tight
6. Start Doing Up The Bottom First Then Top Then Back To Bottom Until Bar Is Firm.

As All 4 Fixings Are Tightened The Bar Will Need Holding In Place.
